When purchasing replacement magnetrons, buyers often focus solely on parameters such as output power and operating frequency. While these specifications are crucial, the magnetron’s mechanical structure is equally important. A mismatch in mounting configuration can turn a simple replacement task into a complex and unnecessary repair job.

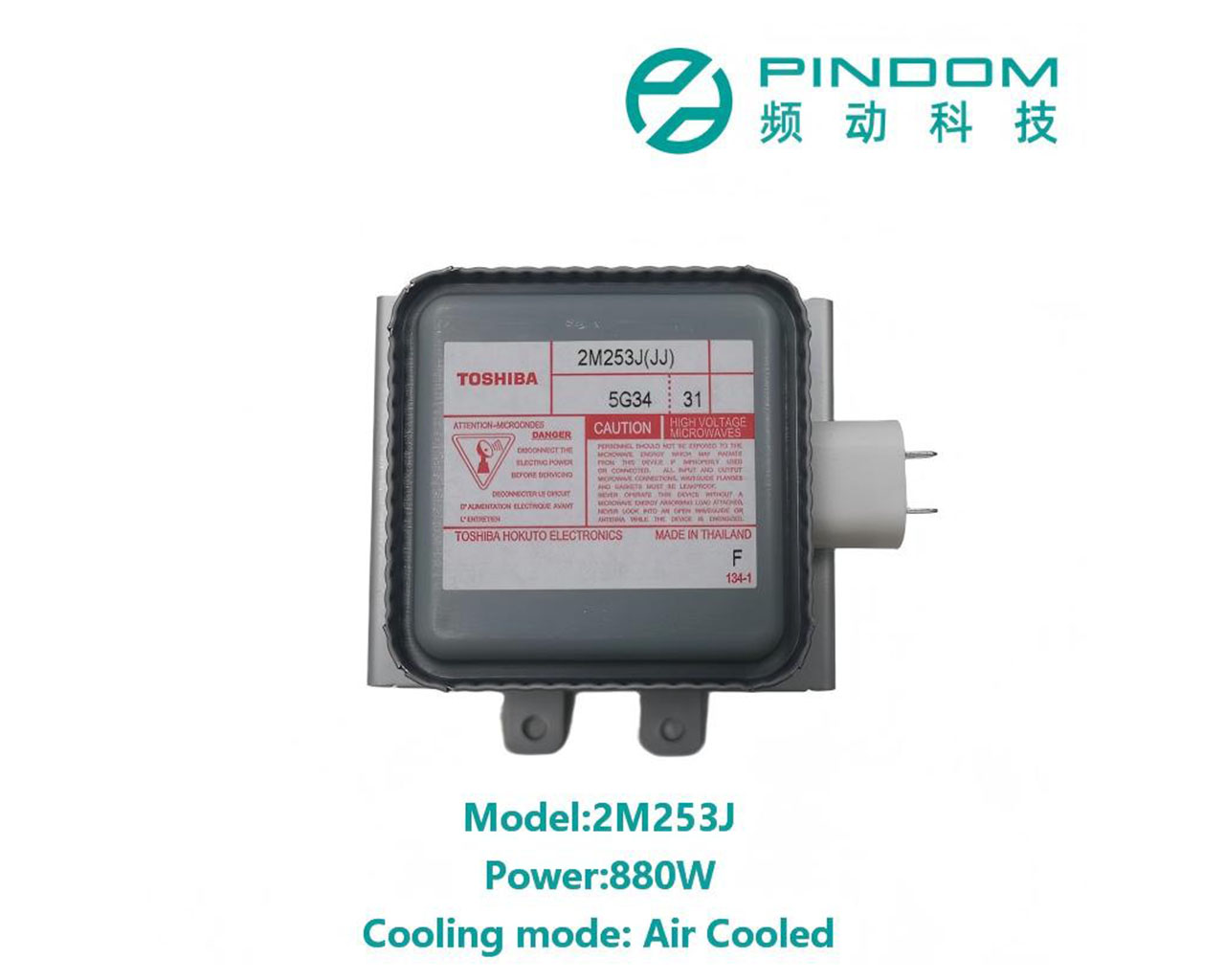

The Air Cooled Microwave Heating Spare Model 2M253J for Industrial Microwave Heating Equipment Magnetron (long-lead type) is specifically designed for industrial microwave heating equipment featuring a long-lead, four-hole mounting configuration.
Not all 2M253J units are identical. Even with the same model number, different versions within the same series may differ in their mounting structures.
Key Features of This Model
- Long-lead structure
- Four-hole mounting base
- Air-cooled design
- 880 W output power
- 2450 MHz ±10 operating frequency
Therefore, maintenance personnel must carefully verify both the electrical parameters and the physical structure of the original component before ordering a replacement.
If, upon receipt, the mounting holes do not align or the lead lengths do not match, stop any attempt to force the installation immediately. First, measure the hole-to-hole spacing (distance between the centers of diagonally opposite holes) and the lead extension length (from the base surface to the tip of the lead) on the original magnetron, then compare these measurements item by item with the supplier’s specification drawing. If only the hole spacing matches but the lead length deviation is ≤2 mm, you may attempt to adjust the fit using insulating spacers. However, if the deviation exceeds 2 mm or the hole spacing itself does not match, the unit must be returned or exchanged. Never drill or enlarge mounting holes, nor bend the mounting leads, as this can compromise the grounding path and create a risk of microwave leakage. Before placing an order, always request the PDF drawing showing installation dimensions directly from the supplier rather than relying solely on text descriptions. The tolerances specified in the drawing are the only reliable basis for determining compatibility.
Why Air Cooling Remains Widely Used
For many industrial microwave heating systems, air-cooled magnetrons remain a practical choice. Their simple cooling structure facilitates routine maintenance and ensures stable operation for equipment designed specifically for air cooling.
Retaining the original cooling method during replacement effectively avoids unnecessary modification work. If a newly installed magnetron frequently shuts down due to overheating—despite the model being correct—three factors should be checked in order of priority:
- Verify the fan’s rotation direction (incorrect wiring on some three-phase fans can cause reverse rotation, drastically reducing airflow).
- Check whether the pressure drop across the intake filter exceeds the limits specified in the equipment manual (a simple anemometer can measure outlet airflow velocity; if it falls below 70% of the nominal value, the filter requires cleaning or replacement).
- Inspect the exhaust ducting for excessive bends or constricted cross-sections that could cause increased backpressure.
These three issues account for over 80% of air-cooling failures. Rather than blindly installing a higher-power fan, restoring the airflow to the original design specification is the fundamental solution. Arbitrarily increasing airflow can disrupt the thermal balance of the resonant cavity and actually shorten the magnetron’s lifespan. If the original fan has aged, a replacement with the exact same model number or an identical performance curve should be selected.
Typical Application Scenarios
This 2M253J long-lead magnetron is suitable for compatible industrial microwave heating equipment meeting the following configuration requirements:
- Air-cooled magnetron
- Long-lead mounting structure
- Four-hole mounting base
- 2450 MHz operating frequency
Selecting the correct configuration helps reduce installation time and allows the equipment to return to operation more efficiently.
In continuous food-processing thawing lines, the 880 W power output combined with the 2450 MHz frequency enables uniform thawing within the –18 °C to 0 °C range, preventing surface overheating. In this scenario, the magnetron must withstand over 16 hours of continuous daily operation. The long-lead, four-hole structure ensures a secure connection in high-vibration conveyor environments, while the air-cooled design meets heat-dissipation needs in humid workshop settings.
In chemical powder drying reactors, it serves as a replacement for traditional hot-air drying, reducing batch cycle times by over 30%. Here, the magnetron is often installed in the confined space of the reactor sidewall. The long-lead structure allows it to pass through the insulation layer to couple directly with the resonant cavity, while the four-hole base provides extra torsional strength to prevent connection loosening caused by thermal expansion.
In rubber pre-vulcanization preheating stations, where rubber compounds undergo rapid heating prior to tire molding, magnetrons must support frequent start-stop cycles and rapid response times. A frequency tolerance of 2450 MHz ±10 MHz ensures optimal matching with the resonant cavities of legacy equipment, preventing protection mechanisms from triggering due to excessive reflected power caused by frequency drift.
If you are searching for industrial microwave magnetron replacements, 2450 MHz magnetrons for food processing, or long-lead magnetron compatibility, the Air Cooled Microwave Heating Spare Model 2M253J is a proven solution designed specifically to meet these high-load and high-compatibility requirements.
To avoid purchasing refurbished or incorrect parts, request factory test reports for each batch (including actual measured values for anode current, filament voltage, and output frequency) and verify that the serial numbers in the reports match the labels on the actual units. Prioritize suppliers who offer a “no-questions-asked return/exchange policy within 7 days of receipt” and explicitly guarantee returns if the mechanical structure is incompatible. When working with a new supplier, consider placing a small trial order to verify installation compatibility before committing to bulk purchases. While this slightly increases initial costs, it mitigates the risk of production-line downtime caused by an entire batch of incorrect parts.
Conclusion
When selecting replacement magnetrons, one must not focus solely on matching power output; mechanical compatibility is equally critical for ensuring a smooth installation. With its 880 W output power, 2450 MHz ±10 MHz operating frequency, air-cooled design, and long-lead four-hole mounting configuration, the Air Cooled Microwave Heating Spare Model 2M253J for Industrial Microwave Heating Equipment Magnetron offers a reliable replacement solution for compatible industrial microwave heating equipment.
