When industrial microwave heating systems show signs of declining heating performance, many operators tend to prioritize checking the power supply or control system. However, the magnetron itself is one of the most easily worn components.
A magnetron failure can lead not only to unstable heating and reduced processing efficiency but also potentially to unplanned production interruptions. Therefore, accurate fault diagnosis is just as important as selecting a suitable replacement.

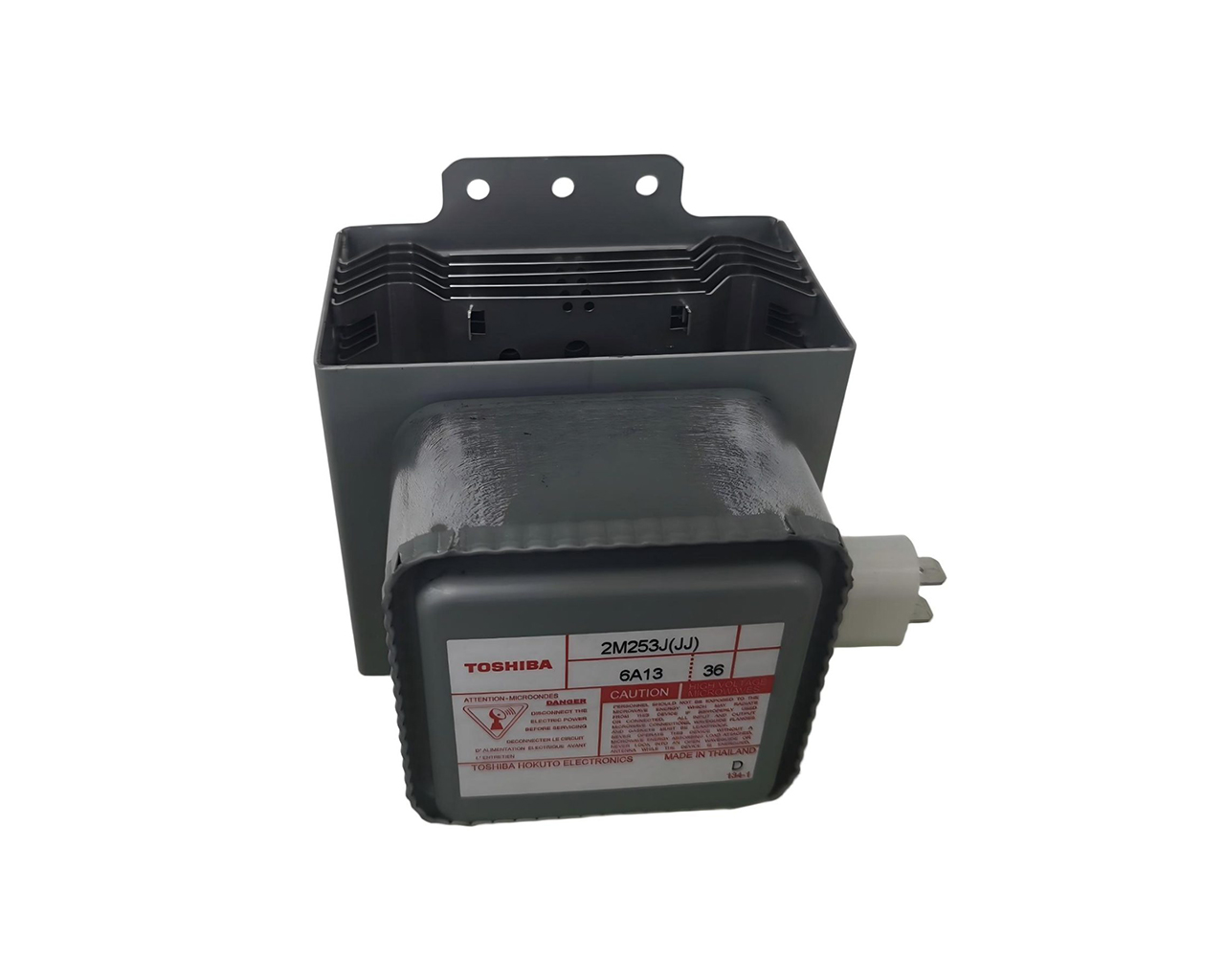

The High Stability Air Cooled Microwave Magnetron 2M253J (Short Leg) is designed for industrial microwave heating equipment that demands stable microwave output and easy replacement.
Specifically Built for Industrial Heating Applications
Unlike household magnetrons, industrial heating equipment typically faces longer operating times and higher load pressures. Replacement components must maintain stable microwave performance while ensuring precise compatibility with the original equipment.
The High Stability Air Cooled Microwave Magnetron 2M253J (Short Leg) features:
- Air-cooled design
- Six-hole base with Short Leg structure
- 880W output power
- Operating frequency 2450MHz ±10
With these specifications, this product is an ideal replacement for a wide range of industrial microwave heating equipment.
Why Structural Matching is Crucial
When replacing a magnetron, simply checking the electrical specifications is far from sufficient. Engineers must also confirm the following physical parameters:
- Mounting Structure
- Base Configuration
- Leg Style
- Cooling Method
If these parameters do not match, it will not only prolong installation time but may also force unnecessary modifications to the equipment. The 2M253J’s Short Leg six-hole configuration is designed to accommodate equipment based on this mounting structure, effectively simplifying the replacement process.
In high-load continuous production line maintenance, special attention must be paid to the oxide layer condition on the magnetron anode surface. If the old anode shows abnormal arc erosion marks, it often means that there are metal debris residues inside the waveguide cavity. In this case, simply replacing the magnetron without thoroughly cleaning the cavity may cause the new tube to fail again within weeks. This detail is crucial for ensuring long-term stable operation but is often overlooked.
Air-Cooled Solution for Conventional Industrial Operation
Due to its simple structure and convenient maintenance, air-cooled magnetrons remain a practical choice for many industrial microwave systems. As long as the equipment operates under the cooling conditions specified in the design, air-cooled magnetrons can provide stable and reliable performance without additional water cooling facilities.
Typical Application Scenarios
The High Stability Air Cooled Microwave Magnetron 2M253J (Short Leg) is often used as a replacement magnetron in industrial microwave heating equipment, especially suitable for scenarios with high requirements for compatibility with original equipment manufacturer (OEM) designs.
For example, in tunnel-type microwave drying lines in food processing plants, multiple magnetrons need to work together to maintain a uniform temperature field. If the Short Leg dimensional tolerance of the replacement part exceeds the OEM specification, it can cause waveguide coupling misalignment, leading to localized overheating or power reflection.
Furthermore, in temperature-sensitive processes such as rubber vulcanization and ceramic sintering, frequency stability of 2450MHz ±10 directly determines product yield. This is why professional maintenance teams, in addition to verifying the model number, also require suppliers to provide batch frequency test reports when purchasing replacement parts.
Before replacement, please ensure that the new part’s model number, installation configuration, cooling method, and operating frequency are completely consistent with the existing equipment. It is also recommended to replace the waveguide sealing gasket (usually made of silicone or fluororubber) simultaneously, as its aging can easily lead to microwave leakage. This is both a mandatory requirement of the IEC 60335-2-90 safety standard and a necessary measure to ensure long-term stable operation.
Conclusion
Replacing a magnetron is not as simple as just selecting the right power rating. Only by ensuring a complete match between the installation structure, cooling method, and operating frequency can installation difficulties be minimized and the equipment quickly restored to normal operation.
The High Stability Air Cooled Microwave Magnetron 2M253J (Short Leg), with its 880W output power, 2450MHz operating frequency, and air-cooled six-hole structure, is a reliable replacement option for industrial microwave heating equipment. For equipment manufacturers and end-users, choosing replacement parts that conform to internationally accepted installation specifications and have traceable parameters not only reduces overall operation and maintenance costs but also avoids the risk of secondary downtime due to non-standard compatibility. This is the core value that distinguishes industrial-grade spare parts from consumer-grade products.
