While many microwave generators can achieve high power output for brief periods, very few systems can sustain a stable output continuously without succumbing to drift, overheating, or damaging surrounding components.

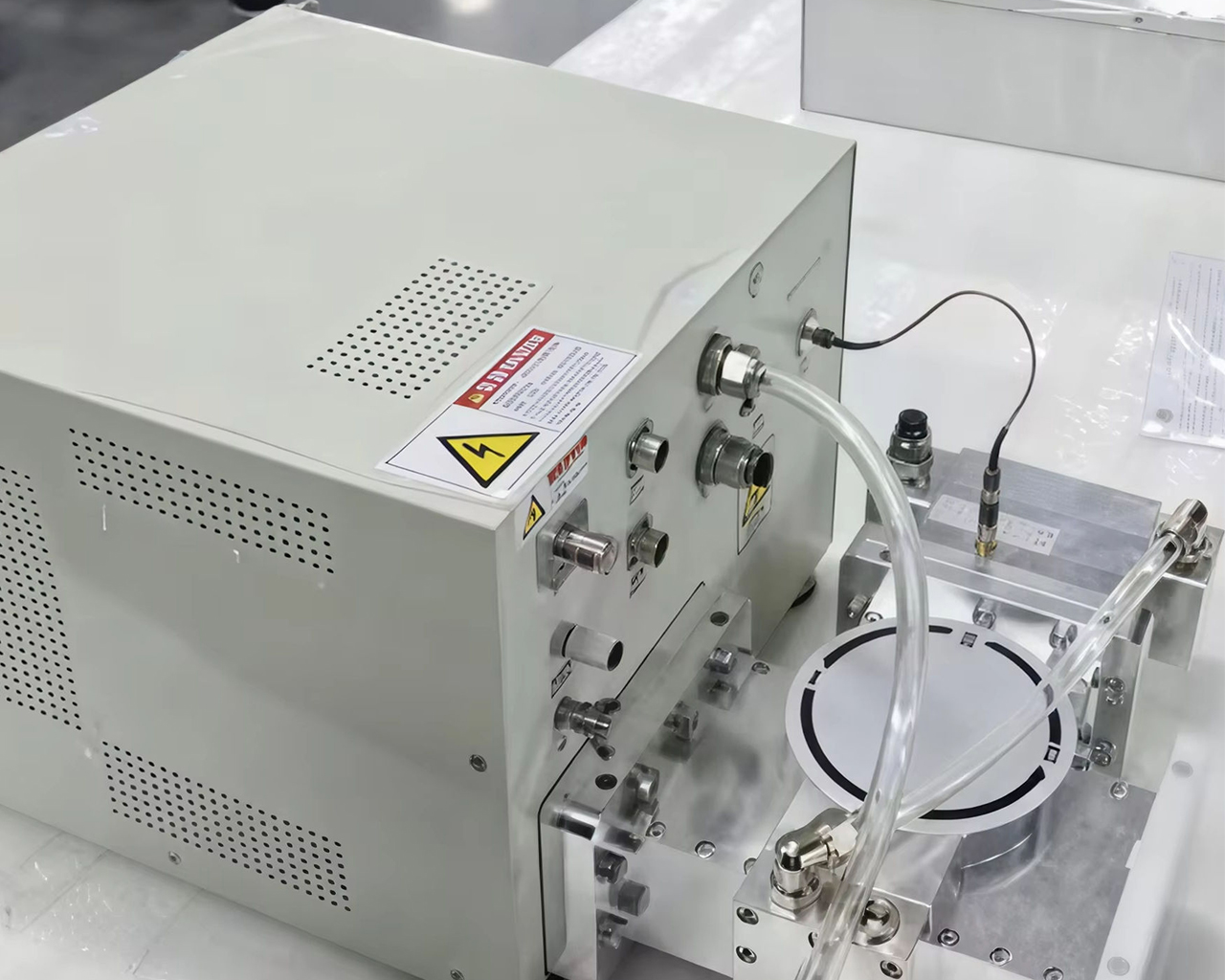

The Pindom WF103-S 10KW microwave generator was designed specifically to address this challenge. This system is engineered for continuous industrial operation, rather than merely for short-duration demonstration scenarios.
Continuously Adjustable Power Is More Important Than Peak Output
The WF103-S features the following core specifications:
- Continuously adjustable power range: 500W–10KW
- Stability: Better than 0.5%
- Frequency range: 2450±20MHz
This wide range of adjustability is critical because the dielectric properties of industrial materials often change dynamically during processing. For example:
- Ceramic Drying: As moisture content decreases, the material’s absorption rate of microwave energy drops significantly.
- Chemical Reactions: Different stages of a reaction require correspondingly different heating intensities.
- Powdered Materials: Applying rapid heating at an inappropriate stage can damage the granular structure of the material.
Generators with fixed outputs struggle to effectively adapt to these changes; the WF103-S, however, offers continuous adjustability that precisely matches process requirements. Notably, its switching power supply architecture enables millisecond-level power response times. When a material’s dielectric constant undergoes a sudden shift—due to changes in moisture content or phase transitions—the system can execute a smooth power transition from 500W to 10KW within 10ms, thereby preventing localized overheating or process interruptions caused by power lag.
Stability Is More Critical Than Nominal Specifications
Many purchasers often overlook a key technical metric: stability better than 0.5%.
In microwave processing, output instability leads to:
- Uneven heating
- Sudden temperature spikes
- Fluctuations in material quality
In practical engineering terms, “better than 0.5%” means that during full-power operation at 10KW, the actual output power fluctuation does not exceed ±50W. For heat-sensitive materials (such as certain catalysts or polymer precursors), this translates to controlling the rate of temperature rise within the processing cavity to within ±1°C/s—a factor that directly determines batch-to-batch consistency. Output stability is particularly critical in the following application scenarios:
- Continuous conveyor belt systems
- Microwave plasma applications
- Large-volume drying chambers
The Necessity of Water Cooling at 10 kW Power Levels
At the 10 kW continuous output power level, thermal management is a prerequisite for reliable system operation.
The WF103-S employs a water-cooled design to ensure:
- Constant operating temperatures
- Consistently stable microwave output
- Extended lifespan for critical components
Industrial-grade water cooling systems typically require a coolant flow rate of no less than 8 L/min, with the temperature differential between the inlet and outlet controlled within 5°C. The heat exchanger design of the WF103-S meets this standard, ensuring that the junction temperature of the magnetron or solid-state source remains consistently below the safety threshold. Without efficient cooling, power drift becomes inevitable during prolonged continuous production runs; empirical testing has shown that a 10 kW system lacking effective water cooling can experience an output power decay of over 8% after just 30 minutes of operation—far exceeding the promised stability tolerance of 0.5%.
Power Supply System Design
- Maximum Anode Voltage: 12.5 kVDC
- Filament Current: 47 A (during preheating)
The parameters listed above demonstrate that this system is engineered specifically for demanding industrial environments—capabilities far beyond those of light-duty equipment. Furthermore, its switching power supply architecture significantly enhances the dynamic response speed of power regulation.
Typical Application Fields
The WF103-S is suitable for the following scenarios:
- Microwave sintering
- Chemical heating
- Industrial drying tunnels
- Large-scale material processing
- Plasma systems
Conclusion
The Pindom WF103-S 10kW microwave generator is designed specifically for industrial facilities that require continuous operation under load conditions. Its core value lies in its output stability, cooling reliability, and precisely controllable power delivery capabilities—rather than merely in its nominal power rating.
