A clear distinction exists between two types of devices: those capable of reaching a peak power of only 6 kW and those capable of reliably sustaining a continuous output of 6 kW. The Pindom 6kW Microwave Generator serves as a prime example of the latter. It is specifically engineered for Continuous Wave (CW) operation—a capability for sustained, stable performance that, in most industrial settings, holds far greater value than mere momentary peak output.
Key Technical Specifications
- Output Power: 0.6–6 kW (Continuously Adjustable)
- Frequency: 2450 MHz ±30 MHz
- Spectral Width: <2 MHz
- Efficiency: ≥62%
- Control Interface: Local Control + RS485 (MODBUS RTU)
Why is “Spectral Width” Crucial?
This parameter is often overlooked; however, in applications such as Plasma-Enhanced Chemical Vapor Deposition (PECVD), the spectral purity directly determines the consistency of the reaction process.
Typical Application Scenarios
Diamond Growth (MPCVD) The stability of the microwave output directly correlates with the uniformity of the plasma. Should any power drift occur, the quality of the thin-film deposition will be severely compromised.
Chemical Vapor Deposition (PECVD) Precise control over energy input directly influences the chemical reaction rate and, ultimately, the quality of the deposited coating.
Industrial Heating / Drying The capacity for continuous, stable operation ensures that material processing within conveyor belt systems achieves a high degree of uniformity.
Cooling System: The Cornerstone of Stable Operation
This system employs a highly efficient water-cooling solution (requiring a water flow rate of ≥8 L/min). This design serves not only to ensure operational safety but, more importantly, to guarantee stability during continuous operation—thereby completely eliminating “thermal drift” (power fluctuations caused by thermal effects). In contrast, air-cooled systems of equivalent power rating often suffer from power fluctuations when operating under full load—a critical shortcoming that the water-cooling solution effectively circumvents.
Seamless Integration into Production Lines
Equipped with an RS485 + MODBUS communication interface, this microwave generator can be effortlessly integrated into—and synchronized with—the following systems:
- Programmable Logic Controller (PLC) Systems
- Centralized Monitoring and Management Platforms
- Multi-Unit Synchronous Operation Systems
This integration capability is particularly critical for scenarios requiring scalable expansion—transitioning from single-station laboratory experiments to fully automated production lines.
Key Advantages at a Glance
- Highly Stable Output (Power fluctuation ≤ 1%)
- Comprehensive Safety Protection (Covering VSWR, arc discharge, overheating, abnormal water flow detection, and more)

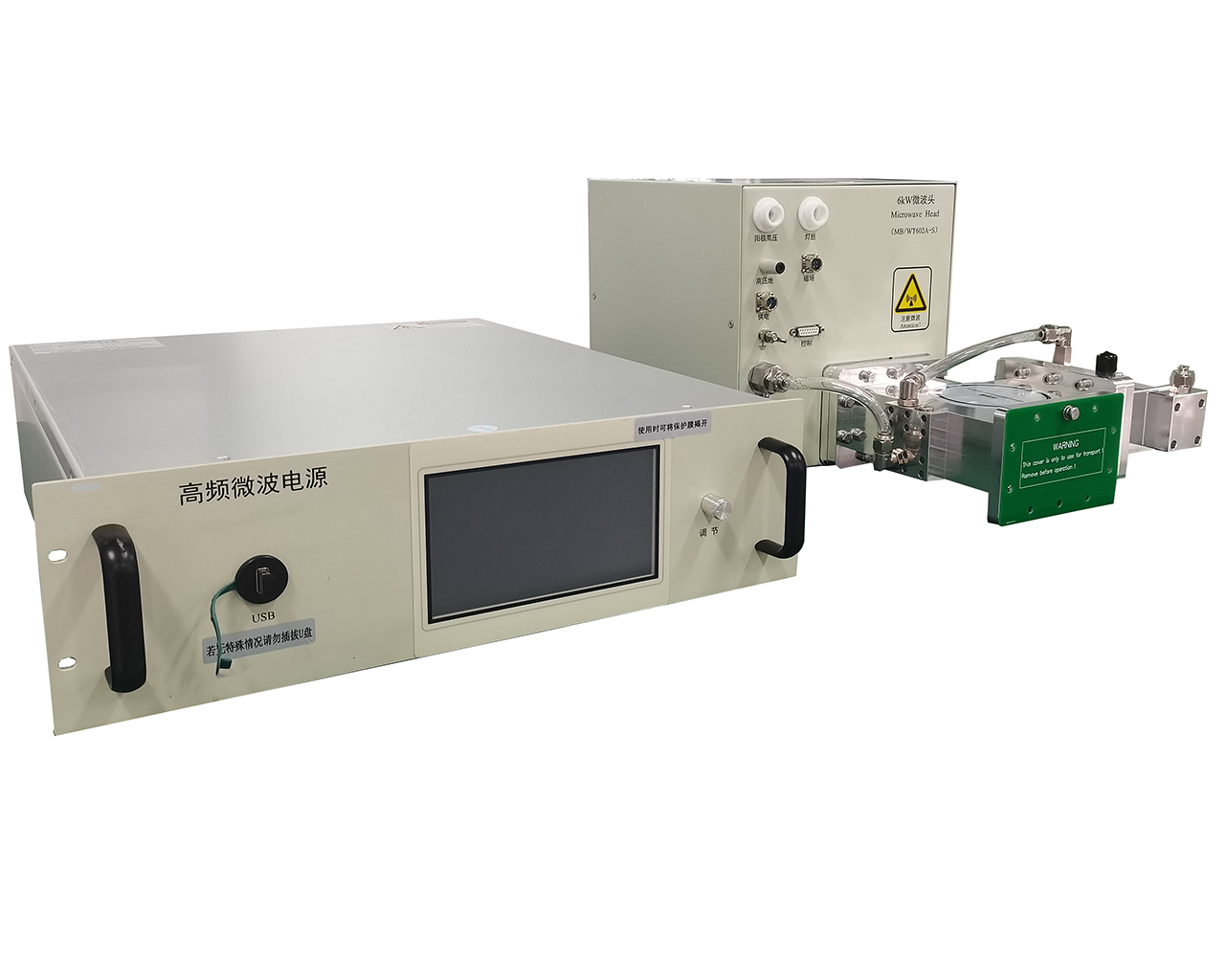

- Turnkey Delivery (Includes power supply unit + microwave head + connecting cables; ready to use right out of the box)
Conclusion
The Pindom 6kW Microwave Generator is engineered specifically for processes where “consistency takes precedence over sheer power output.” It is not designed for fleeting laboratory tests but rather for rigorous industrial systems that demand continuous, day-in, day-out operation—systems that maintain a “zero-tolerance” policy toward any power fluctuation.
